BHEL Jharkhand – Industrial Factory Facility

When BHEL - Bharat Heavy Electricals Limited - commissions an industrial facility, the bar is set high from day one. This is an organisation built on precision manufacturing, heavy fabrication, and large-scale engineering outputs. The structure housing those operations has to match that standard, especially when developing an industrial factory building using a steel structure system for heavy engineering use from one of the leading PEB manufacturers in India.

The brief for this Jharkhand project was: deliver a 24,000 sq. ft. factory facility capable of supporting heavy engineering operations, continuous production workflows, large moving loads, and vibration-intensive machinery - all within a structure designed for decades of uninterrupted use. Standard industrial shed construction was never going to meet that requirement. This approach reflects modern factory construction in India, where performance, durability, and structural efficiency are critical.

What Made This Different - The Demands that Set this Project Apart

Heavy engineering factories are not just larger versions of standard warehouses. The structural, mechanical, and operational requirements are fundamentally different. Here is what shaped every design decision on this project.

Heavy machinery loads

The floor and structural frame were engineered to carry point loads and distributed loads far exceeding typical industrial buildings. Foundation design was driven by equipment load schedules, not just building dead weight.

Dynamic & vibration loads

Fabrication and machining equipment generates cyclic and impact loads those conventional structures are not designed for. The steel frame was analysed for dynamic load effects, with connection detailing checked against fatigue-relevant criteria.

Overhead crane provision

Crane rails and crane girder connections demand rigid, high-stiffness connections between the crane girder and the main column. The primary frame was designed to accommodate crane loading from the outset, not retrofitted as an afterthought.

Continuous operational stress

BHEL's facilities operate on multi-shift schedules. The structure had to be engineered for continuous use without cumulative degradation — this influenced material specifications, connection design, and the protective coating system.

Industrial ventilation requirements

Heat, fumes, and particulate matter generated by heavy engineering processes require a ventilation solution beyond standard passive ridge cowls. Mechanical and natural ventilation systems were combined to maintain safe and workable internal air quality.

Clear-span floor planning

24,000 sq. ft. of factory floor needed to be organised into logical production, assembly, and material movement zones — without columns in operationally critical positions. Span layout was coordinated with the client's equipment layout drawings from the design stage.

PROJECT SPECIFICATIONS - Technical configuration in full

What Was the Client Looking For?

The client needed more than a simple factory; they needed a high-performance PEB industrial solution. The most important requirements were a column-free structure that could facilitate an easy workflow, the transportation of materials, and efficient use of space.

In addition, the building had to support heavy load-bearing capacity, massive machinery, and ensure the proper lighting and ventilation. Efficiency in cost and shorter construction times were also important factors. These demands led to the PEB construction being the best option, since it provides the ability to move quickly, with speed, and strength in comparison to conventional RCC structures.

Site Analysis & Planning Strategy

Every successful construction venture begins with solid groundwork and this project was no different. A thorough geotechnical investigation was done for the purpose of determining the earth's soil's Safe Bearing Capacity (SBC) that shaped the layout of foundations.

The topography of the site was thoroughly studied to ensure the proper grade and leveling. There was a proper layout that was done to ensure that space was made the best it could be. Stormwater drainage systems were given special consideration to avoid water build-ups and damage of the structure with time.

Our Design & Engineering Approach

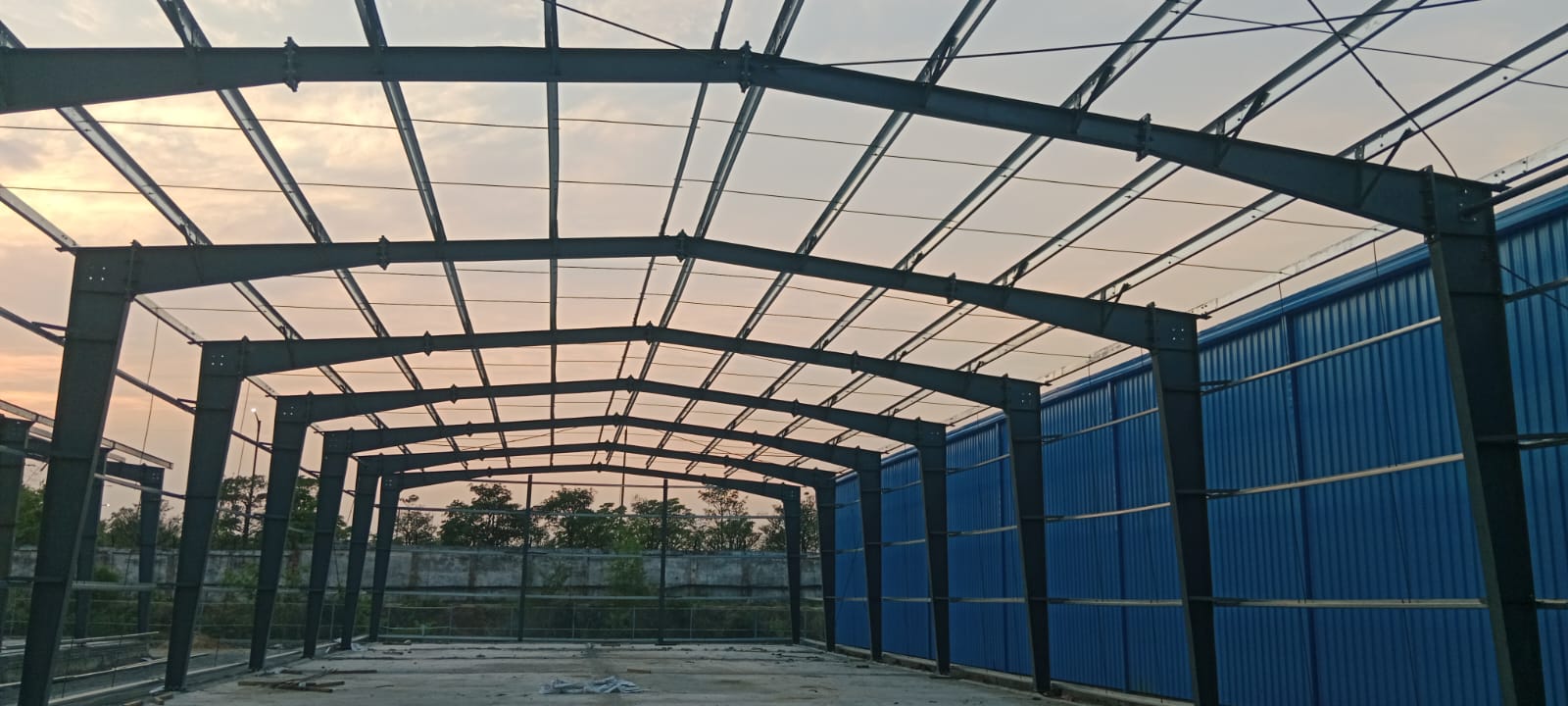

The structure was constructed with the help of advanced PEB engineering principles that focus on strength, efficiency and cost reduction. The structural system comprises primary members like columns and rafters. They are made with tapered sections built up to minimize the consumption of steel while maintaining strength.

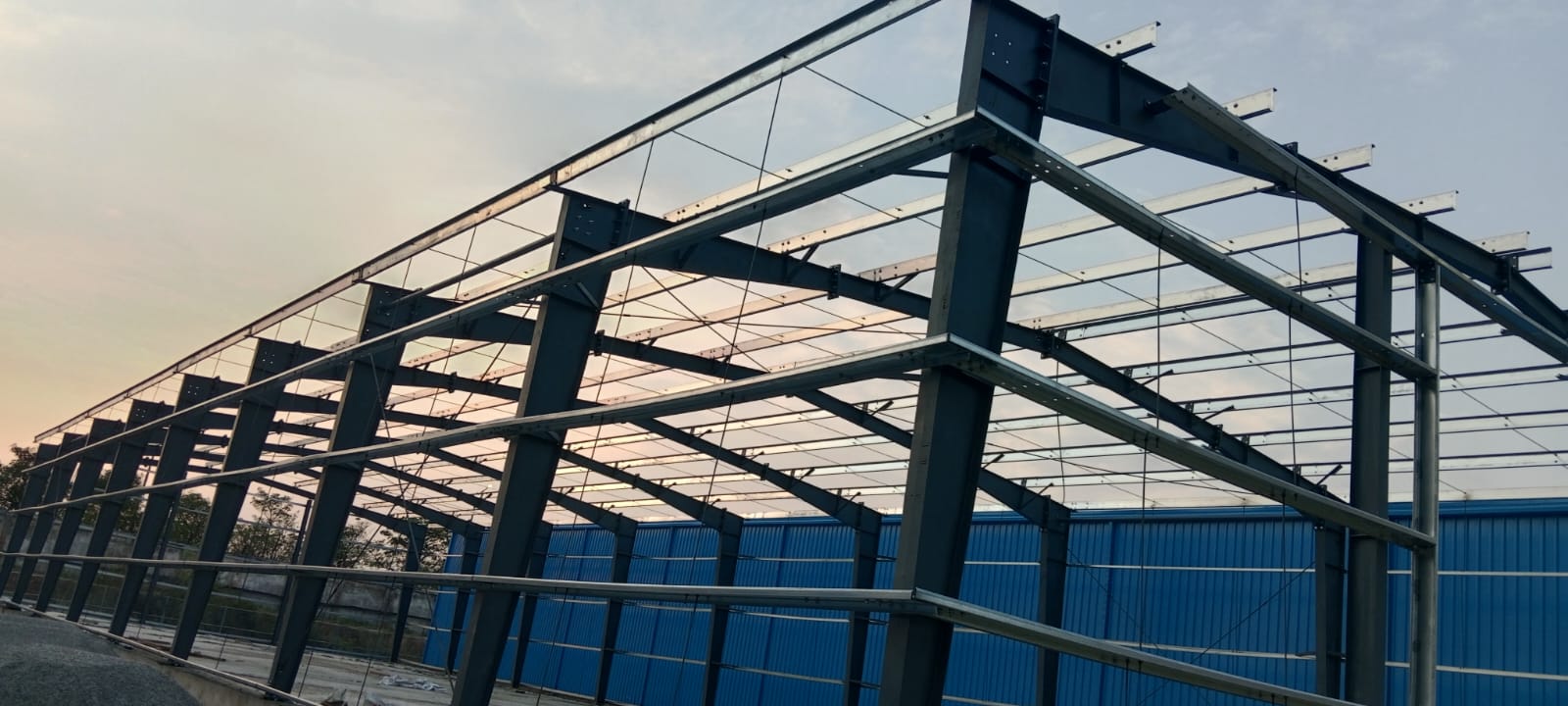

Secondary members comprising purlins, girts and eave struts were incorporated to offer additional assistance and support. A strong bracing system provides protection against lateral forces, such as seismic and wind forces.

All of the structure's components were studied by using a cutting-edge design program, considering dead loads, live loads, and seismic forces. Utilizing High-strength Friction Grip (HSFG) bolts assures strong connections and ensures long-term structural stability.

Step-by-Step Construction Process

Materials & Technology Used

This project incorporates high-quality construction materials: High-strength structural steel (Fe-grade steel), Galvalume roofing sheets, Advanced sealing and insulation systems

Quality Control & Safety Standards

Safety and quality measures were adhered to: Multi-level inspection procedure, Testing and certification of materials, PPE use and secure erection techniques

Challenges & Smart Engineering Solutions

Challenges: Uneven terrain and site conditions, Weather-related interruptions, Large-scale steel handling

Solutions: Advanced site grading and levelling, Phased execution planning, Use of heavy lifting machinery and skilled workforce

Key Features of the Factory Building

Delivering Value Through Modern Construction

This project shows how modern construction techniques can improve industrial infrastructure. Through the combination of modern engineering, top-quality materials and efficient execution we built an infrastructure that can meet requirements for future and current operational needs.

The BHEL Jharkhand industrial factory building is an illustration of the importance of creativity as well as efficiency and reliability in the field of heavy engineering construction.
